SP-4206 Stages to Saturn

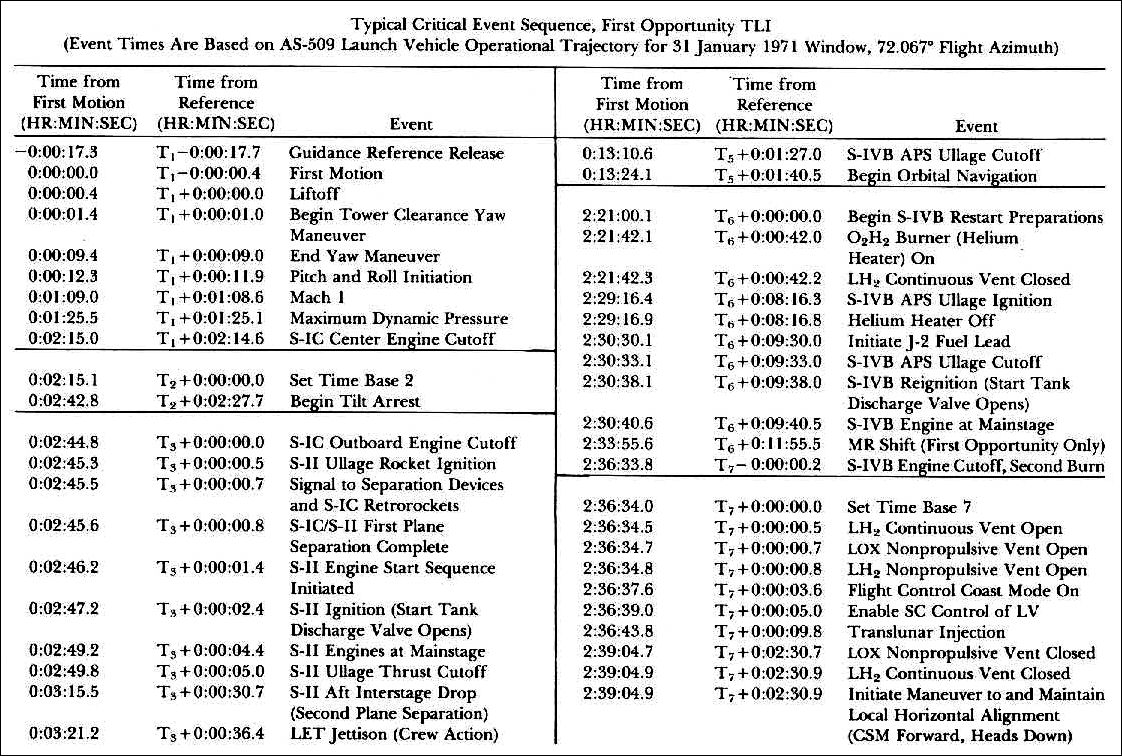

Typical Critical Event Sequence, First Opportunity TLI (Event Times Are Based on AS-509 Launch Vehicle Operational Trajectory for 31 January 1971 Window, 72.067° Flight Azimuth).

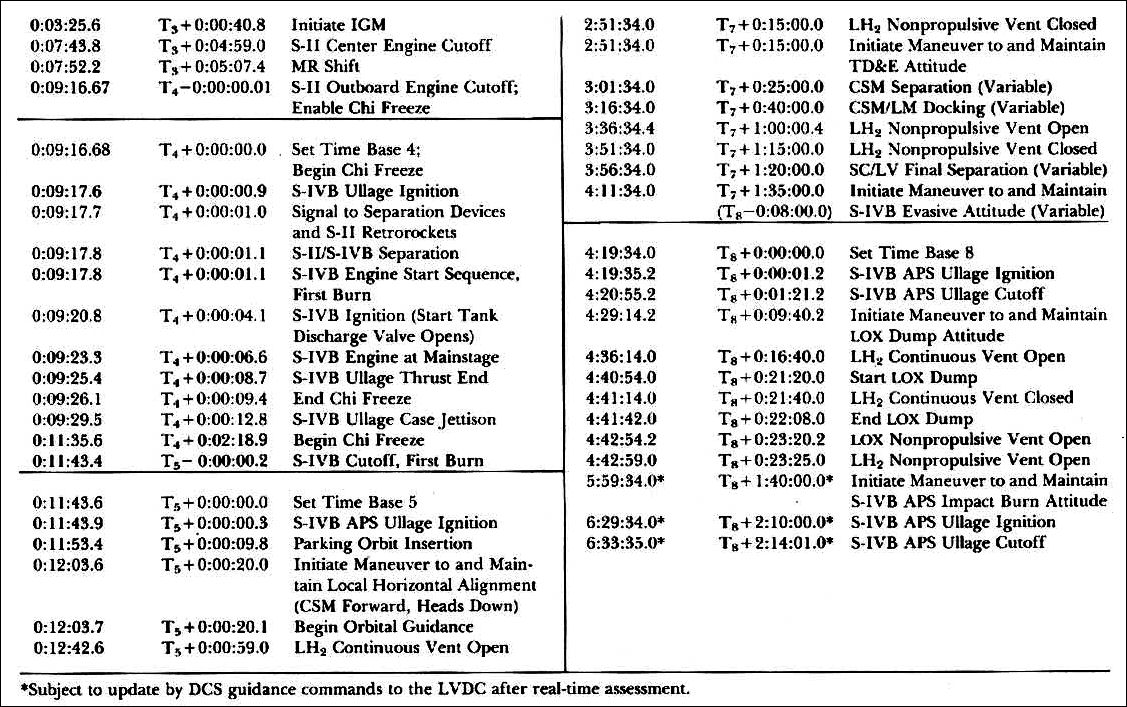

Typical Critical Event Sequence, First Opportunity TLI (Event Times Are Based on AS-509 Launch Vehicle Operational Trajectory for 31 January 1971 Window, 72.067° Flight Azimuth)- continued



Typical Critical Event Sequence, First Opportunity TLI (Event Times Are Based on AS-509 Launch Vehicle Operational Trajectory for 31 January 1971 Window, 72.067° Flight Azimuth).
